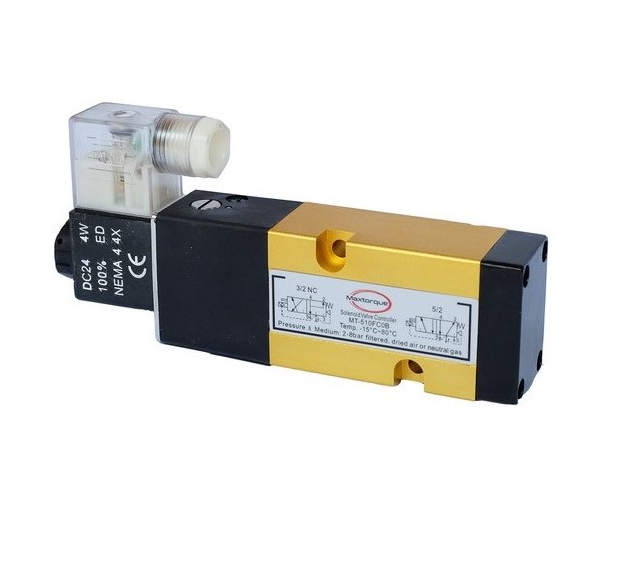

MT-5/2 -3/2 WAY 24VDC, 1/4'' BSP DCV- NAMUR

5/2-3/2(n/C)-WAY ¼’’BSP 24VDC SERVO ASSISTED DIRECTIONAL CONTROL VALVE (dcv), single coil/spring return, nbr

The MT series Namur style solenoid valve is a versatile component designed to adapt as an 5/2- way DCV (5 ports & 2 positions) or 3/2-way normally closed with the aid of changeable adaptor plates. These valves are commonly used to directly mount to double & single acting pneumatic actuators or cylinders and can be used in processing equipment. Working pressure from 2 bar to 8 bar and the working voltage from 12-48VDC, 110-240VAC-(50/60HZ), making these valves versatile and suitable for different electrical setups.

The spool and body of the valve are made from extruded aluminium, which is known for its lightweight & durable properties. They are also anodized coated, which provides protection against corrosion. The valve is rated at IP65, a high level of protection against dust and water ingress. This makes it suitable for both indoor and outdoor environments where it may be exposed to moisture or dust. Operating Temperature Range of -20°C to 80°C allows it to function effectively in various environmental conditions, including cold and hot temperatures.
