M1 Series 2-Way Ball Valve Adaptor Set

M1Ball Valve 2-Way DN32 PVCu, solvent socket ends d 1-1/4″ ASTM PN16 EPDM, ADAPTOR SET – F05 / 14MM SQ. DRIVE

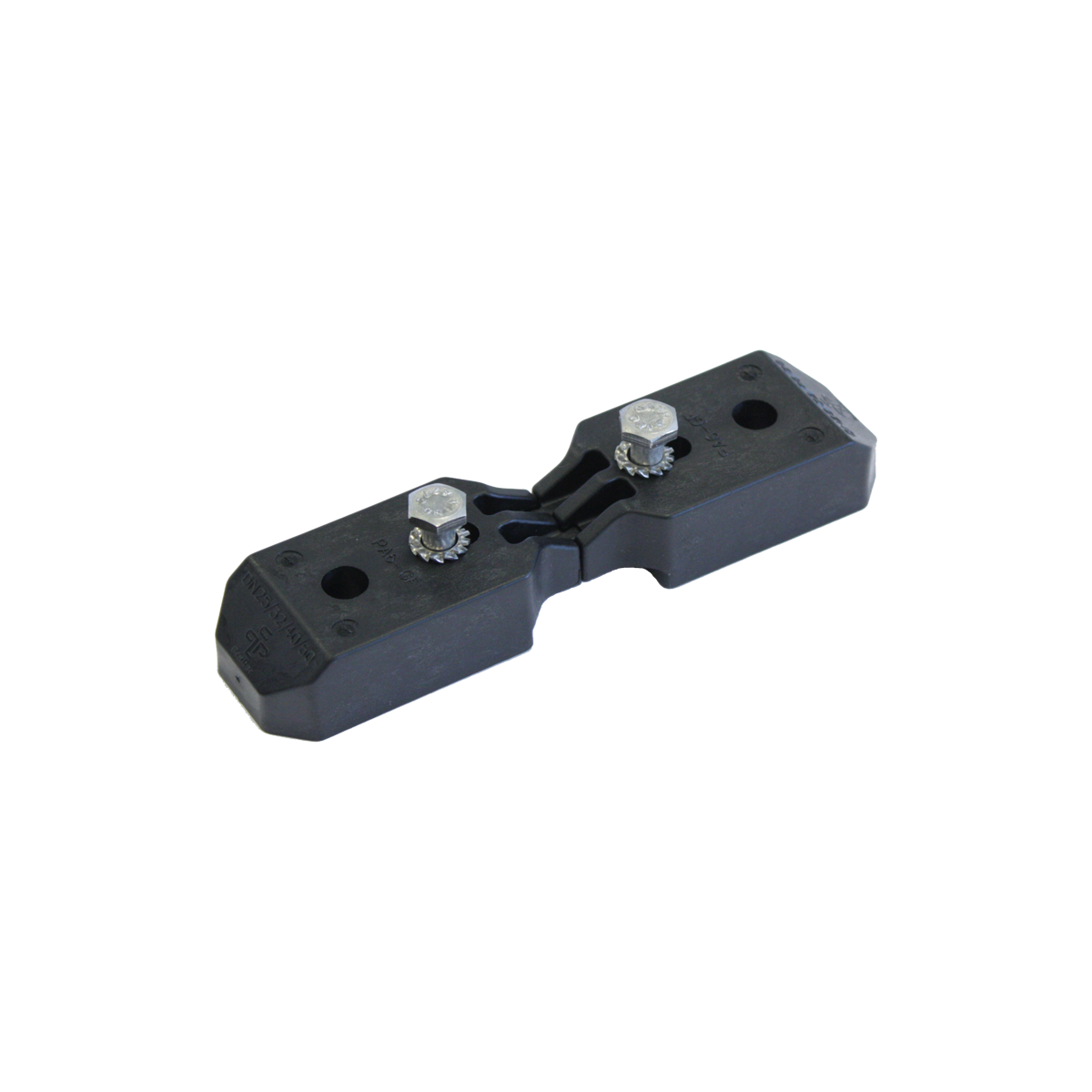

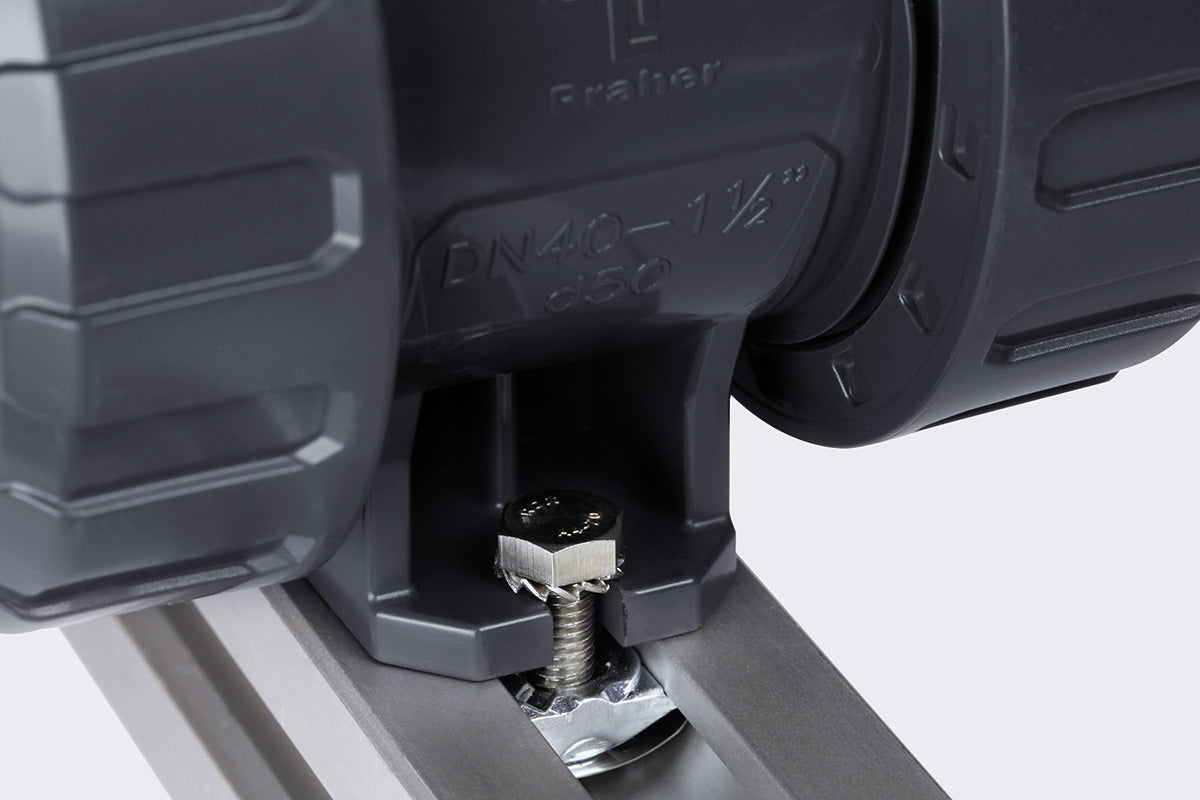

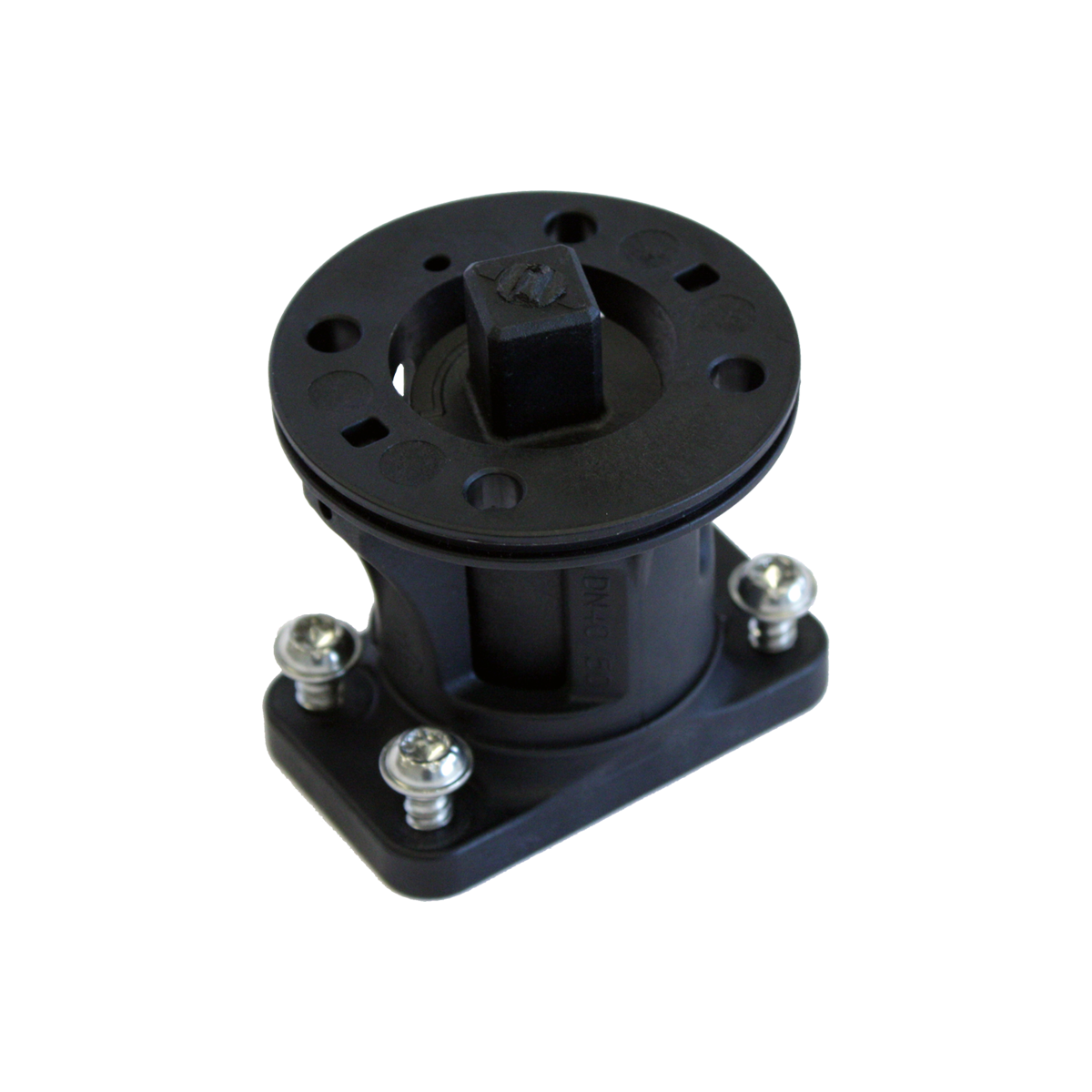

The M1 ball valve offers a modular design with a buttress thread, integrated bracket for fix point mounting, and integrated fixations for the modular adapter. With its cushion O-ring for PTFE-seat and double sealed shaft, this ball valve is silicon-free and ensures a perfect fit of the union nut. A locking handle with integrated PLS version. The M1 series can be pneumatically or electrically automated with the customer’s choice of actuator, or from the Fluidflo Maxtorque range of actuators suitable within the water treatment, chemical, oil & gas and other process industries.
