Directional control valves are important parts of a pneumatic or hydraulic system. They play a key role in controlling the direction of air or fluid within these systems, and directing it to the desired location. They are an essential component for the movement of actuators and cylinders because they allow precise control. There are different types of directional control valves suitable for different applications. In this article we will explain what directional control valves are, types of directional control valves, working principles, applications and factors to consider when choosing a directional control valve.

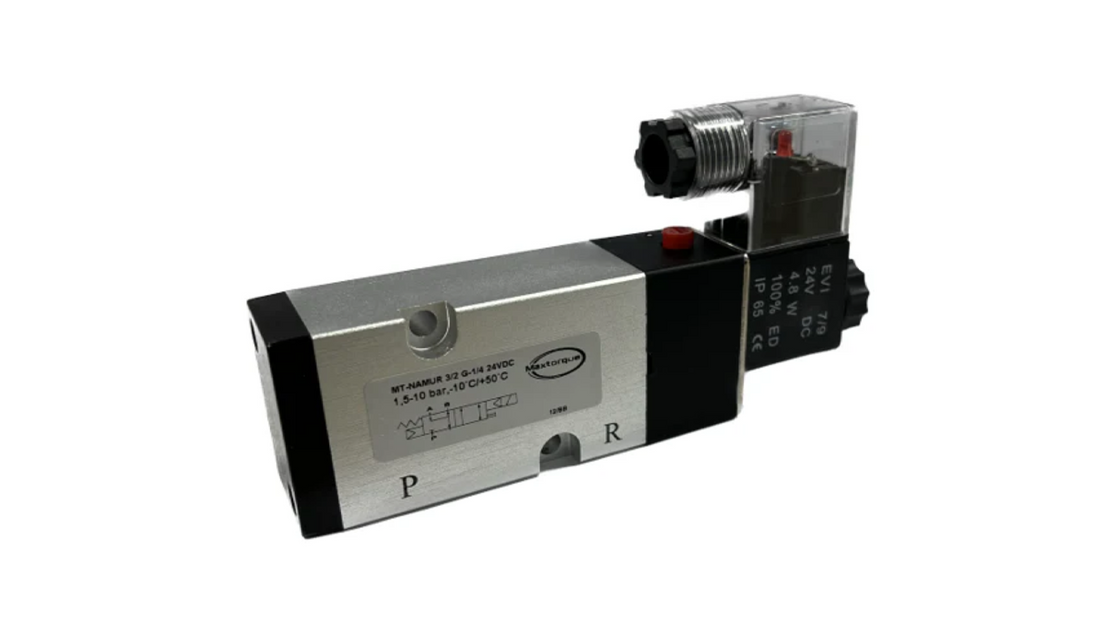

What is a Directional Control Valve?
A directional control valve is a device that directs the path of fluid or air through a circuit and is used to start, stop, slow, accelerate or change the direction of motion within a cylinder. The most significant feature of a directional control valve is the ability to provide precise control over where and what direction fluid or air flows in. By controlling fluid flow with such precision, actuators and cylinders can execute tasks with accuracy, ensuring smooth and safe operations in any industrial application.
Types of Directional Control Valves
There are three main types of directional control valves which can be categorised by their internal control element - spool, poppet and rotary. Each has different configurations depending on the type of fluid or air flow required. The three types of directional control valves are:
-
Spool: These are the most common type of directional control valve and used in nearly every industry because they can perform a wide variety of tasks. They control hydraulic or pneumatic components by allowing, blocking or restricting the flow of fluid or air. Spool valves are essentially a cylinder inside a sealed outer case. The spool slides along the axis and controls the flow, pressure and direction of the fluid or air. Spool valves have several ports, which are holes drilled through the case from one side to the other. When these ports are open they allow the transfer of fluid or air. Spool valves can also be categorised by their different configurations including 2-way, 3-way and 4-way. Each configuration serves a different purpose. 2-way valves control the flow on and off in one direction. 3-way valves divert the flow of air or fluid between two different pathways. 4-way valves are used to direct the flow between two actuators or cylinders.
-
Poppet: These valves use a cone shaped poppet or disc to control the flow of fluid or air. They are a robust and durable valve that is often used in engines or pneumatic or hydraulic circuits that require pulsed flow control. Poppet valves are ideal in applications that require tight control and where quick response is crucial as they usually open quickly. They are often made up of a disc with a rod known as the valve stem. This stem pushes down on the valve to open it up and a spring system closes it automatically. These valves are often used in piston engines by opening and closing the cylinder head to control the flow and intake of exhaust gases. Depending on the application, poppet valves can be direct acting or pilot operated. If direct acting, the valve is operated directly by external forces. This type is used to prevent overpressure. Pilot operated, on the other hand, is controlled by pilot pressure and used to regulate pressure.
-
Rotary: Rotary valves are used to control fluid or air flow by using a rotary spool or cylinder. They have a cylinder or ball shaped plug that rotates within the housing. When the angle of rotation is adjusted, it can increase, decrease or completely shut off fluid or air flow. Rotary valves are significant because they can handle high temperature and high pressure applications. They have a compact design and excellent sealing capabilities. This makes them ideal for use in industries like oil, gas, and chemical processing plants. Rotary valves can either use a sliding cylinder to control fluid or air flow direction or a rotary spool which manages fluid pathways.
What is the Working Principle of Directional Control Valves?
Directional control valves start, stop or change the direction of fluid or air flow in hydraulic or pneumatic systems. They have the capability of shifting from fully open to closed which causes fluid or air to rapidly accelerate or decelerate. To understand how this is achieved, the basic working principle of directional control valves falls under three categories - actuation methods, valve positions, and valve configurations.
- Actuation Methods: Valve actuation methods are what causes the mechanism to open and close. A directional control valve can be actuated via three methods - manual, solenoid and hydraulic. The manual method involves operators using manual knobs or levers to control the valve positions. Solenoid actuation uses electromagnetic solenoids to convert electrical energy into motion, causing the movement. Hydraulic actuation is when hydraulic pressure is used to control the valve position.
- Valve Positions and Symbols: Valve positions and the direction of flow is illustrated by using symbols. These symbols provide detailed information about the valve they are representing. Symbols can show the method of actuation, number of positions, flow path and number of ports. The five most common valve positions are open centre, closed centre, tandem centre, float centre and regenerative centre.
- Valve Configuration: Valves can be configured and designed as series, parallel, or combination design. There are also single or double solenoid configurations. Each configuration will be suitable for different applications. Single and double solenoids are classified based on the number of solenoids they use. A single solenoid valve would be used to control a one-way flow of fluid or air, while a double is more complex and can control a two-way flow of liquid or air.
In regards to the three types of circuit design configurations, a series circuit design involves multiple directional control valves connected in a sequence to control flow. Parallel circuit design, on the other hand, involves multiple directional control valves arranged in a parallel design. Combination circuit design is when both parallel and series circuit designs are combined to provide flexible and versatile solutions to fluid and air flow.
Industries that Use Directional Control Valves
Directional control valves are used in a wide variety of industries because they allow fluid or air to flow into specific locations of a system to achieve the desired movements. This precision control is widely used in agriculture, construction, manufacturing, transportation and automation to name a few.
-
Agriculture: Directional control valves are used in machinery like tractors and harvesters that rely on directional control valves for steering or lifting. The forest industry uses directional control valves for tasks that require precise direction like tree felling and log loading.
-
Construction: In the construction industry which relies on heavy equipment, directional control valves facilitate the precise movements this equipment needs to operate. Directional control valves provide precise control over hydraulic cylinders in heavy machinery like excavators, cranes, bulldozers and loaders for digging, lifting and manoeuvring.
-
Manufacturing: Directional control valves are essential for the operation of manufacturing equipment. They provide precise control over machinery operations, allowing the starting and stopping of equipment and the regulation of speed and force. This is crucial for manufacturing tasks like cutting and pressing.
-
Automation: Automation systems are automated machinery that use technology to perform tasks instead of a human. It is often used in manufacturing or other processing facilities. Directional control valves are used to control the movement of this automated machinery. By ensuring precision and timing, directional control valves are essential for tasks like packing and storing. They also ensure the automated machines can perform their duties with efficiency and safety.
-
Automotive: Directional control systems are important in the automotive industry for cars, trucks, buses and specialised vehicles. They play a crucial role in vehicle hydraulic systems and are used to manage the flow of hydraulic fluid to power steering and suspension. Directional control valves are used for braking systems, lifting mechanisms and vehicle stabilisation. Because of the direction of the fluid flow, brakes are able to work safely as braking force is distributed evenly and it ensures controlled stopping.
-
Oil and gas: The oil and gas industry relies heavily on the use of equipment like drills. Directional control valves ensure precise control of fluid flow throughout the drilling and extracting process, ensuring efficiency and safety. They also help the machinery maintain the correct pressure flow rate so that the drill can operate at maximum efficiency.
-
Robotics: In the field of robotics, directional control valves are used to manage the movement of arms. By directing the flow of fluid, smooth motion of the arm movement can be achieved which is often used for tasks like welding, assembly or material handling.
-
Medical: Directional control valves are used for some medical equipment and devices. They manage the flow of air and fluids to ensure precision and control of medical equipment like ventilators or anaesthesia machinery. This equipment relies on the exact measure and force of fluid or gas to be delivered to the patient, which is why the use of directional control valves is essential.
Factors To Consider When Choosing a Directional Control Valve
Directional control valve compatibility is paramount when choosing a directional control valve for your industry. Every environment requires a valve that is unique and so all the variables need to be considered. When choosing a directional control valve, take into account these factors:
-
Function: Consider the core function of the directional control valve, whether it be starting, stopping or changing the flow of fluid or air, or all three. What the valve will be used for will have a big impact on the type of valve you choose.
-
Environment: Consider the environmental conditions that may impact the valve’s performance. This means taking into account the weather, temperature and likelihood of humidity or freezing conditions that may cause corrosion. It is imperative that valves are able to withstand hazardous conditions like hostile environments.
-
Type of media: A big factor when choosing a directional control valve is the type of media it will be controlling. Media like compressed air, water, hydraulic oil, water or gas can only be controlled by certain types of directional control valves.
-
Flow factor: Identify the flow factor of the different directional control valves as that will impact the right one for your application. You will need to know your required flow rate to correctly size a directional control valve. If the valve is too big, it is a waste of money. If it’s too small, the actuator will not function properly.
-
Rating: The rating is the total pressure the directional control valve body and stem can withstand. It is important to consider the rating when choosing a directional control valve as it will determine whether it is strong enough to withstand the application it needs to be used for.
How To Select a Directional Control Valve
To choose the right directional control valve for your business, follow these steps.
-
Understand your system’s requirements: When looking at the right directional control valve, you need to have a good understanding of your system’s requirements. This means looking at what flow rate, operational requirements and pressure capacity your system will require to function efficiently and safely. The right valve will have to fit in with your system’s requirements to avoid underperformance.
-
Choose a valve that will suit your system: When choosing the right type of valve, you can decide between manually operating, pilot operating, and solenoid controlled and each will only suit certain applications.
-
Ensure flow capacity is compatible: Remember to consider flow capacity as this must be compatible with your application requirements for optimal performance.
-
Consider environmental factors: If you live in harsh conditions, then certain types of valves will be more suitable while others will be less efficient.
Directional control valves are an essential element for hydraulic and pneumatic systems as they provide precise fluid and air control and direction. Our comprehensive guide was created to help you understand what they are and which one to use for your industry or application. For further information contact the experts in directional control valves at Fluidflo Valve Solutions.
