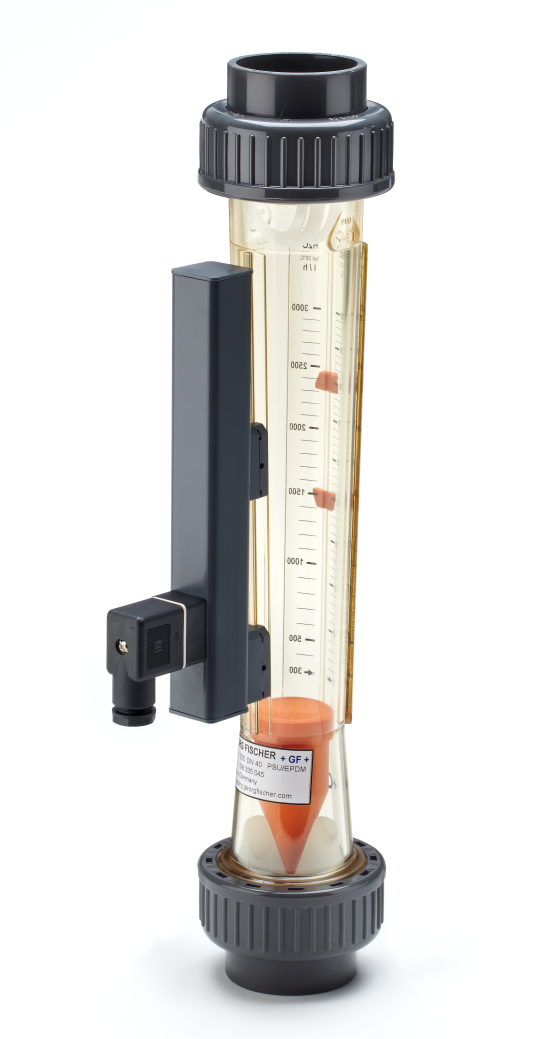

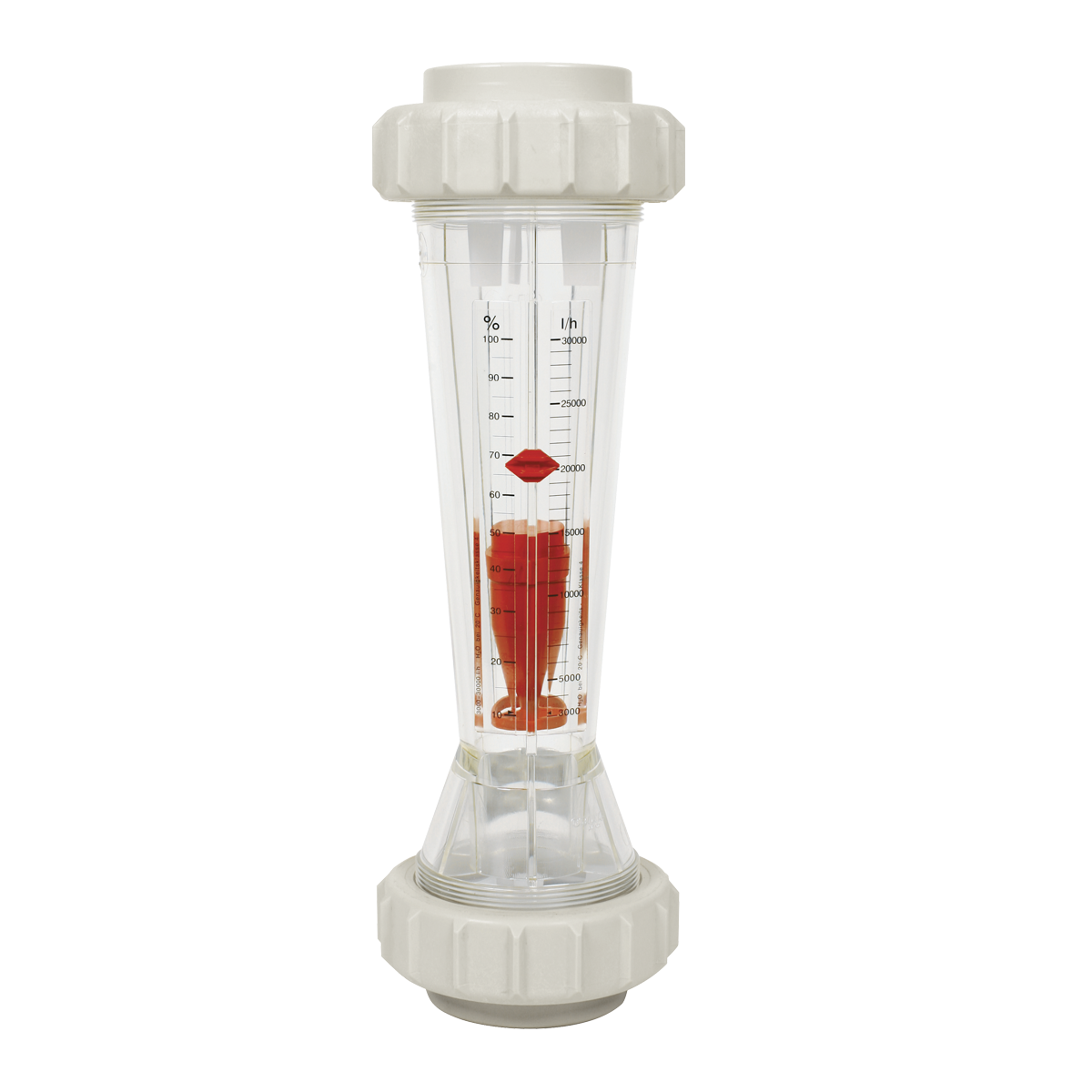

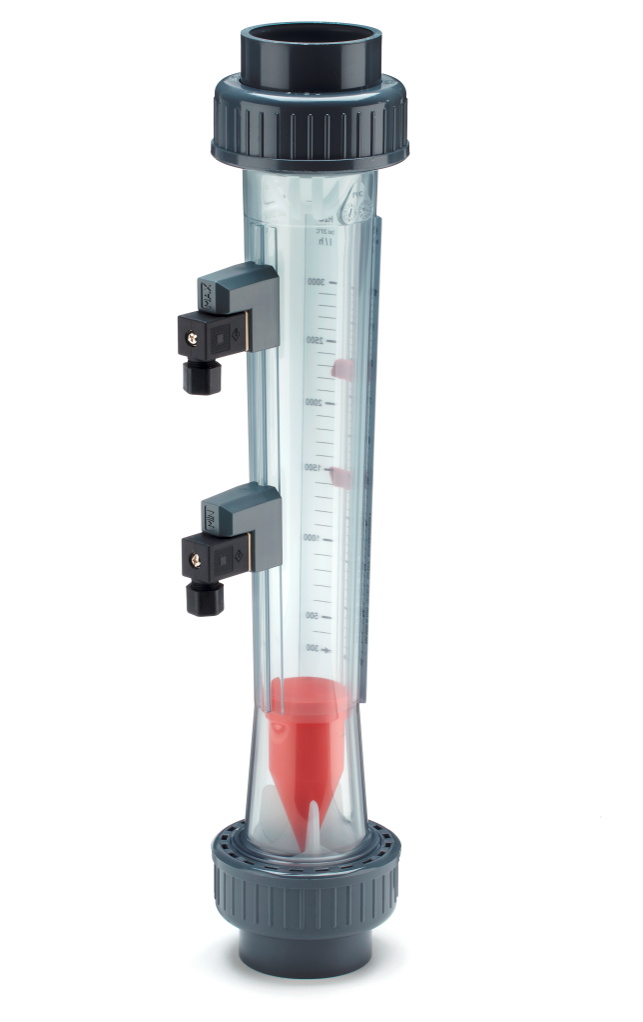

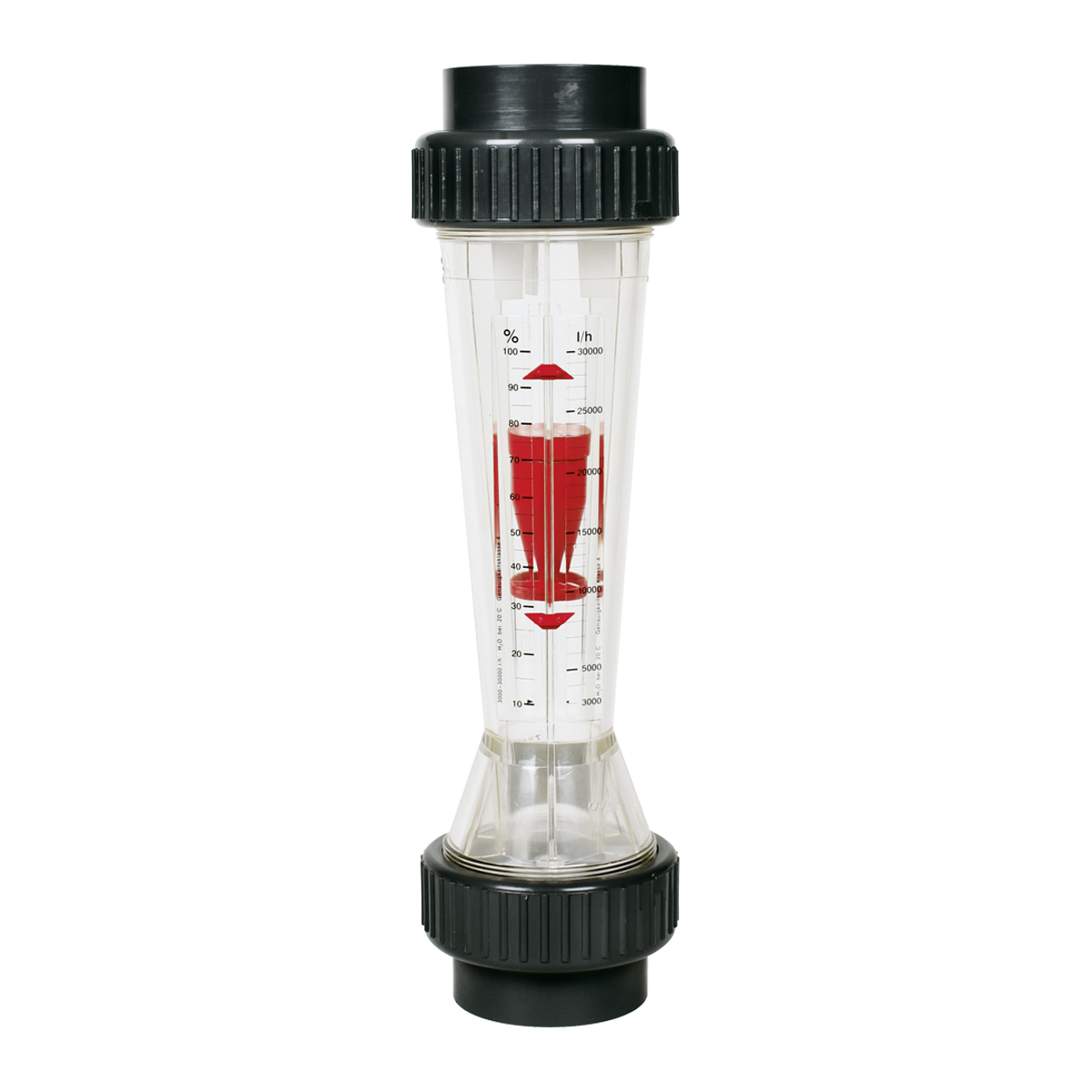

S-DN65 (2-1/2'') DFM 350 FLOWMETER
S-DN65 (2-1/2'') DFM 350 FLOWMETER
S-DN65 (2-1/2'') DFM 350 FLOWMETER, UPVC/PVDF/EPDM/SW 10,000 - 50,000 LPH.
OVERVIEW
Nominal size DN:
10 - 65
10 - 65
Material sealing element (in contact with medium):
EPDM | FPM
EPDM | FPM
Connection:
socket | Spigot | Flange
socket | Spigot | Flange
- Measuring range 3 up to 50000 l/h
- Large selection of measuring ranges, nominal diameters, also for special media
- Suitable for a wide range of applications for gaseous media, water, alkalines, acids
- Direct visualisation of the measured values
- Accuracy class 4
- Integrated mounting rail for flow data sensors
